BIS Certification for
Drives for Vertically Moving Garage Doors for Residential Use

BIS Certification for Drives for Vertically Moving Garage Doors for Residential Use, issued by the Bureau of Indian Standards, is mandatory for manufacturers and importers to market their products in India. The certificate confirms that Garage Door Drives meet the safety criteria as per IS 302 (Part 1):2024 / IEC 60335-1:2020, the Indian Standard on household and similar electrical appliances.

Garage door drives are widely used in residential and commercial buildings, warehouses, parking areas, and industrial sites that require automated garage doors. It should be noted that the use of electric motors, controllers, sensors, and mechanisms ensures the effective operation of drives. The BIS certification indicates that the equipment complies with all requirements for safety and quality testing in accordance with IS 302 (Part 1):2024.BIS certification confirms that the device meets all safety and quality criteria for testing in accordance with IS 302 (Part 1):2024. The issuance of a BIS license will benefit businesses and customers.

What are Garage Door Drives under IS 302 Part 1: 2024/IEC 60335-1?

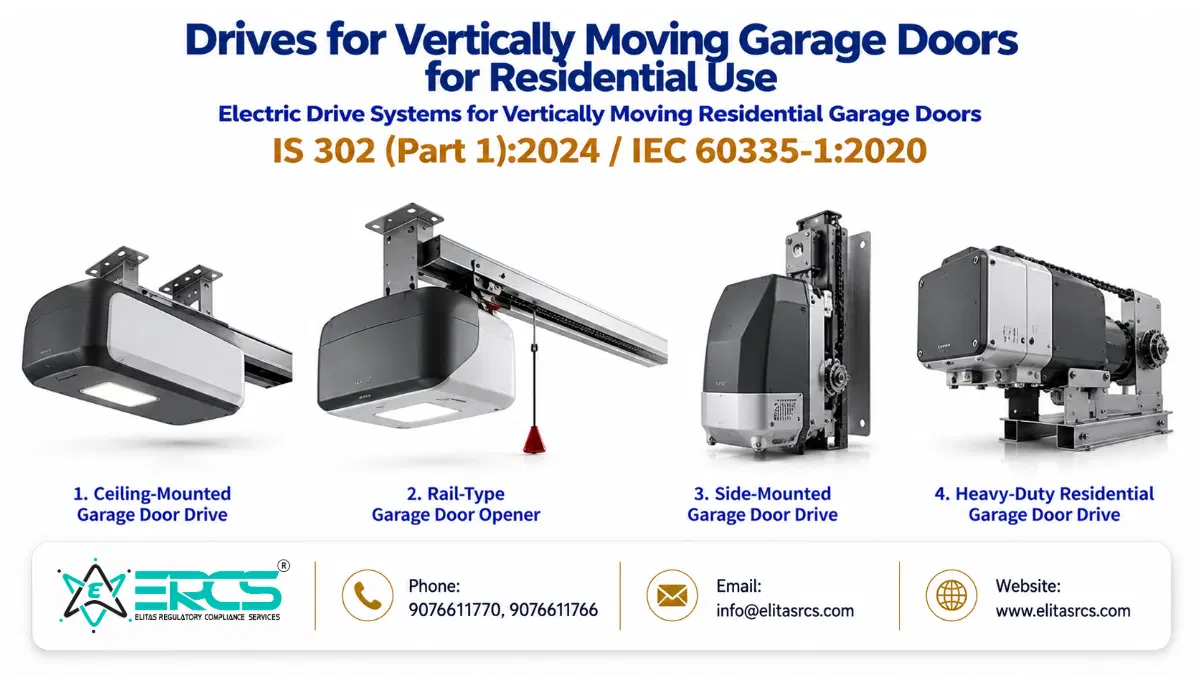

As per IS 302 (Part 1): 2024 / IEC 60335-1: 2020, "Drives for Vertically Moving Garage Doors for Residential Use" is the official designation of Garage Door Drives. According to this classification, garage door drives are electromechanical appliances designed to automatically raise and lower residential garage doors, such as sectional and up-and-over doors, that operate in a vertical plane. Garage door drives are the mechanical components in an automated garage door opener that convert the motor's rotation into the garage door's physical motion.

What are the BIS Testing Parameters for Garage Door Drives Under IS 302 (Part 1):2024?

Testing of Garage door drives under IS 302 (Part 1): 2024 / IEC 60335-1 involves rigorous safety parameters, including protection against electric shock, abnormal operation, moisture resistance, and insulation testing. The essential testing parameters include the following verifications:

• Protection against access to live parts: tests whether there is any way to touch any live part during normal use, installation or user maintenance.
• Heating: tests whether the motor, winding, and enclosure remain within safe temperature limits during normal operation.
• Leakage current and electrical strength: tests the insulation by measuring leakage current and electrical strength at operating temperature and after a humidity test.
• Moisture resistance: tests whether the drive is safe when exposed to the humidity and condensation found in a garage.
• Abnormal operation: tests whether the drive is safe under abnormal conditions, such as rotor locking, motor overloading, or door jamming, and whether the protection systems function properly.
• Force limitation and obstruction detection (auto-reverse): tests whether the door automatically reverses when it detects an obstruction in front of it, protecting people, children, and animals.
• Manual release: tests whether the door can be disengaged from the drive and operated manually, for example, in the event of a power failure.
• End-of-travel stopping: tests whether the drive stops automatically when the door reaches the end of its travel.
• Mechanical strength and construction: tests whether the enclosure, fixing and transmission can withstand

List of Documents Required for ISI Mark Certification of Garage Door Drives

Before applying for the ISI Mark, make sure all required documents are prepared and readily available. Check the list of documents needed for BIS certification of Garage Door Drives.

What Is the BIS Certification Process for Garage Door Drives in India?

Before seeking BIS certification, one should be aware that the time frame depends on many other factors. While the process usually takes 35-50 days for Indian manufacturers, it usually takes around 4-6 months for foreign manufacturers. Follow the certification process below to obtain the ISI Mark on your products:

• BIS Certification Process for Indian Manufacturers
• BIS Certification Process for Foreign Manufacturers

What is the Cost of BIS Certification for a Garage Door Drive in India (2026)?

Below, you can go through the table for the BIS Certification cost of the Garage Door Drives:

Why Choose ERCS as Your BIS Certification Consultant?

With ERCS as your consultant for Garage Door Drives, you can rest assured of compliance with some of the strictest safety regulations (for instance, IS 302 Part 1: 2024). It guarantees end-to-end assistance with BIS Certification and ISI Mark consultancy in India. ERCS ensures the avoidance of any customs issues, seizure of goods, and/or penalties arising from non-compliance.

• First-hand knowledge of IS 302 (Part 1): 2024: This standard is used for the safety of appliances. The time taken for the certification process under this standard would be about 30 days for Indian Manufacturers and 180 days for foreign Manufacturers. We carry out the entire certification process seamlessly.
• Experience and services offered: ERCS Pvt Ltd is a consultancy company based in Noida, which was established in 2019.
• Support for foreign manufacturers: ERCS Pvt Ltd provides end-to-end compliance services for BIS and FMCS. Having extensive experience like this might come in handy if a client wishes to obtain certifications for different product lines.
• Foreign Manufacturer Services offered: ERCS Pvt Ltd also offers services as an Authorised Indian Representative (AIR), FMCS, and support services to foreign manufacturers.
