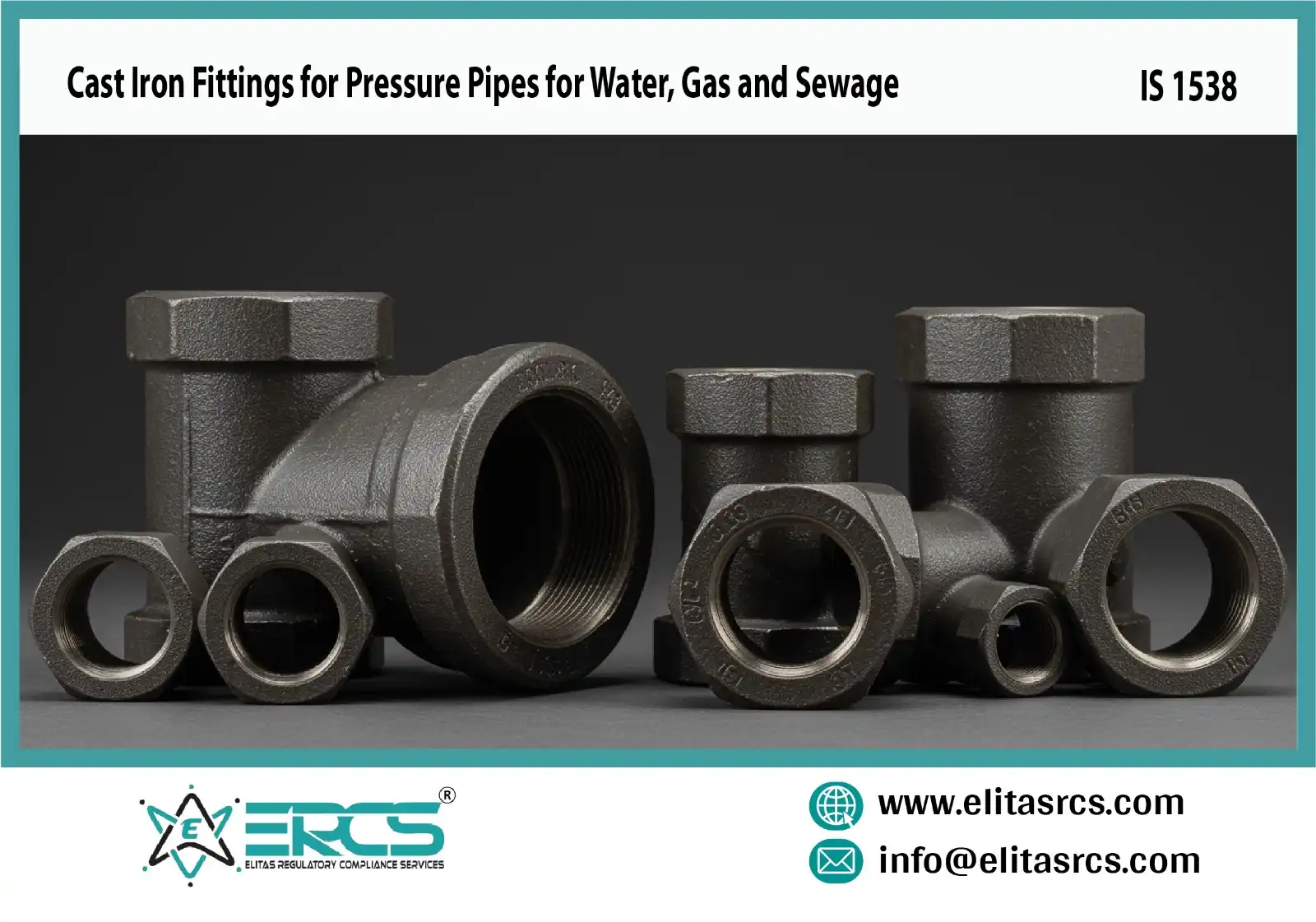

BIS Certification for BIS Certification of Cast Iron fittings for pressure pipes for water, gas, and sewage - IS 1538

Manufacturers obtain BIS Certification for cast iron fittings to IS 1538 specification to prove their products meet the quality and performance standards associated with water, gas, and sewage pressure pipes. The certification requires the manufacturer to meet the requirements of the standard, which includes tests concerning the material, dimensions, mechanical properties, and pressure testing. The manufacturer must also maintain test records and ensure that the product is correctly marked with the Indian Standard Mark (ISI Mark).

Bureau of Indian Standards (BIS) ISI Certification for cast iron fittings for pressure pipes (Water, gas, sewage) means that the product meets Indian standards. The applicable Indian Standard for cast iron fittings for pressure pipes is 1583, and this standard prescribes the requirements and testing for cast iron fittings. Certification involves compliance with appropriate testing for dimensional accuracy, mechanical properties, and pressure properties to ensure that the fittings are reliable and are approved for the marketplace in India.

Overview for Cast Iron Fittings for Pressure Pipes for Water, Gas, and Sewage for ISI Mark Certification

In India, the ISI Mark certification is a requirement for cast iron fittings in pressure plumbing applications that are part of any water, gas, or sewage system. Cast iron fittings used in pressure pipes are strong, durable elements employed to join pipes in a water, gas, or sewage system, providing excellent corrosion resistance and the ability to withstand high pressure and temperatures.

While cast iron fittings were once the go-to material of choice, ductile iron (DI) has overtaken them due to their inherent brittleness. However, cast iron fittings still provide excellent sound insulation and are soundly resistant to fire, and thus can be used in existing plumbing, circulating, and high-end plumbing applications.

Key Specification of IS 1538

• Material: The standard applies to fittings constructed of cast iron with IS 1538, which includes specifications for different cast iron fittings.
• Application: These fittings are suitable for pressure pipes used for conveying water, gas, and sewage.
• Fittings included: The standard specifies different types of cast iron fittings, which may be fitted with spigots, sockets, or flanges. Typical fittings are Nominal diameter (DN): The standard specifies dimensions for fittings with a nominal diameter from 80 mm to 1500 mm.
• Flange sizes: There are tables in the standard which provide the size of the flanges, including the nominal diameter, external diameter, thickness, and radius to bolt hole circle.
• Socket and spigot sizes: Specification for size dimensions is provided for the socket and spigot of the fittings, especially when a lead joint is used.
• Tolerances: The standard provides tolerances for the important dimensions such as external diameter of barrel, internal diameter, socket depth, thickness, length, and mass.

BIS Requirement for Cast Iron Fittings for Pressure Pipes for Water, Gas, and Sewage Certification in India

• Compliance with Indian Standards: Manufacturers need to ensure that their products conform to the applicable IS standards.
• Quality Control: Manufacturers must establish and maintain a quality control laboratory within their organisation to test for compliance.
• Raw Material Compliance: Compliance of the raw materials used must be to the prescribed standards and subject to control.
• Testing and Inspection: Testing, including mechanical strength, pressure rating, and dimensions, must be thorough.
• BIS Licenses: All manufacturers, importers, and foreign companies must acquire the BIS license (ISI Mark) before selling these products in India.

Steps to Obtain ISI Certification for IS 1538

The process below describes how to apply to receive the Bureau of Indian Standards Certificate for the product.

• Application procedure: The manufacturers will apply through the BIS portal, and once they are registered, they can register for a license or certificate as per the application form.
• Documentation: The right documentation must be collected. This includes the factory license, quality control plan, raw material specifications, etc.
• Testing procedure: The sample will be sent to a BIS-registered laboratory to check the components of the chemical components of the tin ingots.
• Factory inspection: The BIS officers will inspect the quality control documentation and layout of the factory.
• License: If everything is satisfactory from the factory inspection, the BIS will provide the manufacturer with a license to use the Standard marking to confirm that the tin ingots are compliant with applicable Indian Standards.

Timeline for BIS License of Cast Iron Fittings

The estimated timeline for obtaining a BIS (Bureau of Indian Standards) license for cast iron fittings used in pressure pipes is generally around 30 days for Indian manufacturers and approximately 180 days for foreign manufacturers. However, the exact duration may vary depending on factors such as the complexity of the product, the required documentation, factory inspections, and product testing. The licensing process includes factory audits and product sampling to ensure compliance with Indian standards, such as IS 1538 for fittings.

Documents Required for ISI Mark Certification of IS 1538

Here is the list of basic documents you must have to obtain ISI Certification for Cast iron fittings:

• Application Form (Form V/VI)
• Factory Registration Certificate (e.g., Udyam/MSME, ROC, Partnership Deed)
• List of Manufacturing Machinery
• List of Testing Equipment with Calibration Certificates
• Product Drawings & Technical Specifications
• In-house Test Reports for IS 1538
• Process Flow Chart
• Factory Layout & Location Map
• Quality Control Manual / SOPs
• Authorization Letter (if applicable)
• ID & Address Proof of Authorized Signatory
• Affidavit/Undertaking as per BIS format
• Fee Payment Receipt

Cost of Product Certification for IS 1538

Go through the table to know the cost of BIS Certification India for IS 1538:
